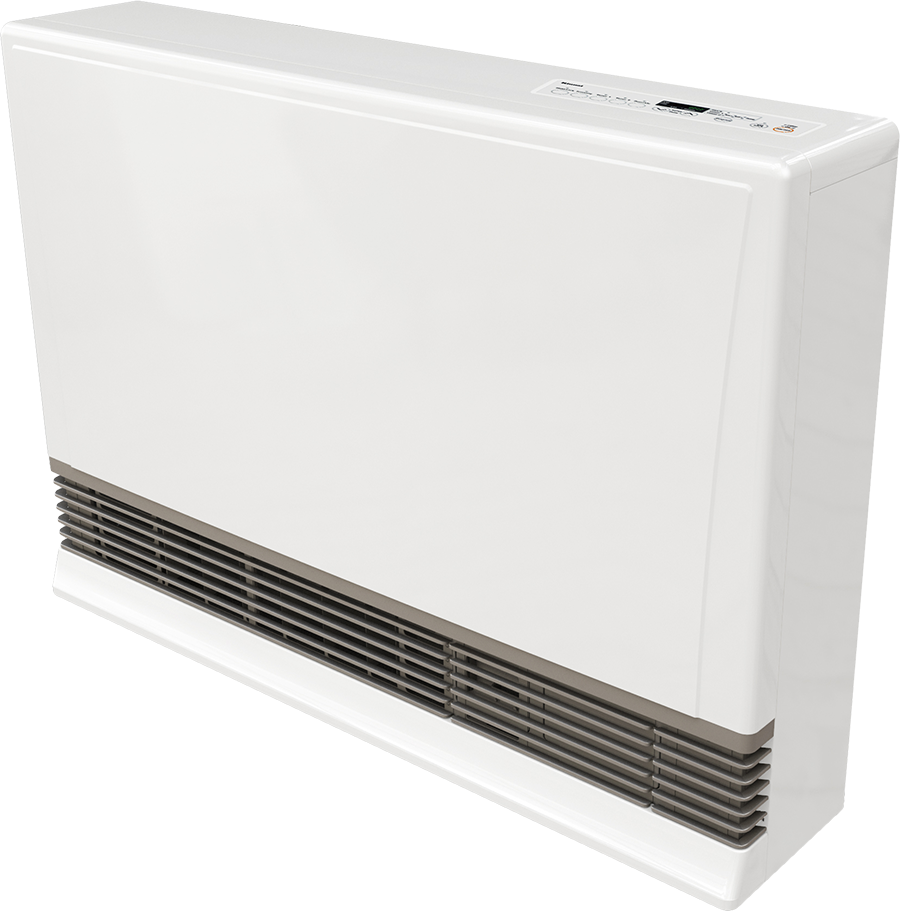

Gas Fired Direct Vent Wall Furnaces
Rinnai direct-vent furnaces are innovative and fully modulating. They deliver smart' energy efficient warm air to those hard to heat areas such as bonus rooms' in law suites' basements and carriage houses. Installation could not be more simple' only requiring a 3" wall terminal hole.
- Cool-to-the-touch cabinet
- Up to 84% AFUE Efficiency
- Sealed combustion - protects indoor air quality
- Electronic ignition - no pilot light
- Wind tunnel tested venting systems
- New Programmable temperature settings
- On board self-diagnostics for easier maintenance
- Earthquake-proof tilt-switch
- Modulating blower and gas valve automatically adjust to individual heating needs' providing comfortable consistent temperature from ceiling to floor.
- Whisper quiet
- Natural Gas or Propane
MODEL | Input MBtuH | AFUE | CFM Max. | Dimensions HxWxD | Weight Lbs. |
---|
EX22C | 21.5 | 81.0 | 163 | 22.9x29.9x10.1 | 57 |
EX08C | 8.0 | 83.0 | 82 | 27.4x18.3x10.1 | 46 |
EX11C | 11.0 | 82.0 | 103 | 27.4x18.3x10.1 | 46 |
EX17C | 16.7 | 82.0 | 138 | 22.9x29.9x10.1 | 57 |
EX38C | 38.4 | 81.0 | 263 | 26.4x36.6x13 | 88 |
Warranty Information
- Heat Exchanger for 120 months - Prorated
- All Parts
for 60 months -
- Limited Labor for 24 months -
Available Documents
2-q120604.pdf (Black & White, DV Space Heaters, Specification Sheet)
2-q110101.pdf (Black & White, Installation & Operation, DV Space Heaters)
